Product Details:

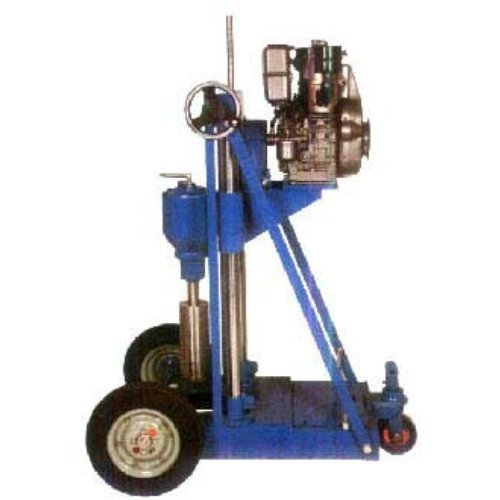

The machine is used to drill cores of Bitumen Pavements. The machine is provided with hand operated rapid screw feed through lever drive with built in ball bearing. The drill spindle is floating on a tapered roller bearings. Water swivel is totally enclosed and mounted on the drill spindle. The drill drive shaft is mounted on two ball bearings in the drill head. The drill is provided with water tank to deliver the water to the cutting operation. The drill is mounted on a sub base which is further mounted on a trolley. The trolley is mounted on scooter tyre wheels and leveling screws to facilitate easy shifting and setting. The machine is fitted with Diesel Engine.
Available in models
- For 100mm dia. sample
- For 150mm dia. sample
