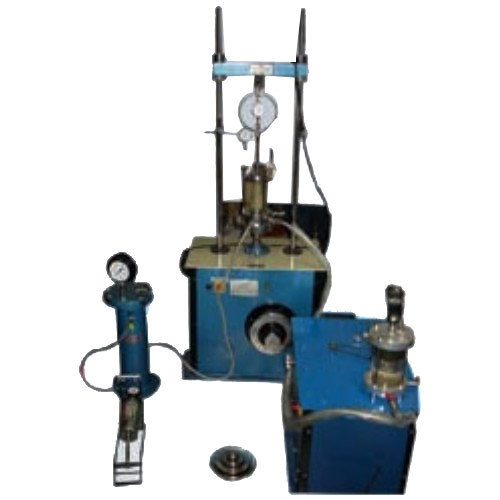

Triaxial Shear Test Apparatus

Product Details:

Consists of -

  1. Load frame, Motorized, to give 6 rates of strain Proving Ring ‘BENT’, 2.5 kN.
  2. Triaxial Cell ‘BENT’, for 38 mm dia. x 76 mm high specimen for lateral
  3. Pore Pressure Apparatus ‘BENT’, for measurement of low negative and positive pore pressures, high pore pressures upto 10 kg/cm2
  4. Volume Change Gauge ‘BENT’, for measurement of large volume changes with a of fluid per cycle.
  5. Lateral Pressure Assembly ‘BENT’, 10 kg./cm2, with pressure gauge and foot pump
  6. Self Compensating Constant Pressure System ( Oil / Water type ) ‘BENT’, pressure range 10 kg/cm², rotated through reduction gear.
